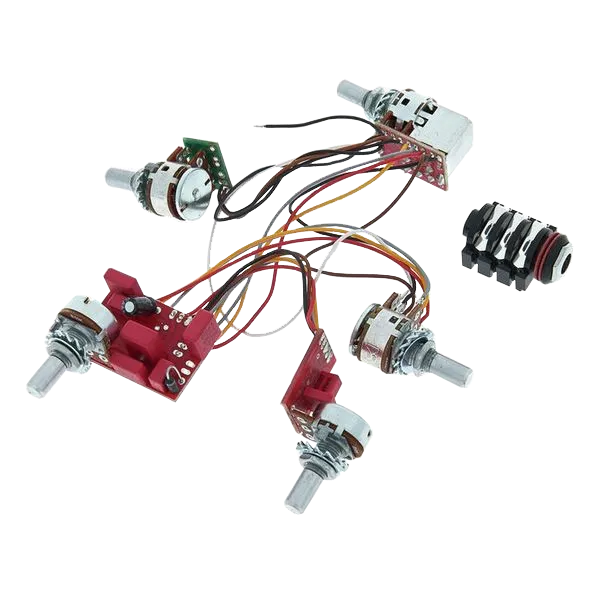

Product Description Product Specs/Additional Information Related Videos Audio Product Description The GLOCKENKLANG 3-band onboard preamp is active/passive switchable (at the volume push/pull), has a balance-pot with no volume dip in centre-position, a treble-pot with /- 18 dB@18 KHz in active mode, acting as classical high cut in passive mode, mid-pot /- 9 dB@550 Hz and a bass-pot with /- 14 dB@40 Hz. Battery-connection is 9 volts.Due to the high performance electronic, in flat position of the eq you can hear no difference between active and passive mode! It comes pre-wired with high flexible cables.Don´t mind the frequencies, we choose them very carefully!The preamp is also available with stacked treble/bass pot. In this case, the passive treble blend is not available! Product Specs/Additional Information Technical Data:Gain: 1 (0 dB)Input-impedance (without Balance): 1,5 MOhFrequency range: 20 Hz -20 KHBass: /- 14 dB@40 HzMid: /- 9 dB@550 HzTreble: /- 18 dB@18 KHzPower requirement: 9 volts/2,3 mAMin. installation depth: 28 mm (1.1″) Related Videos Audio
