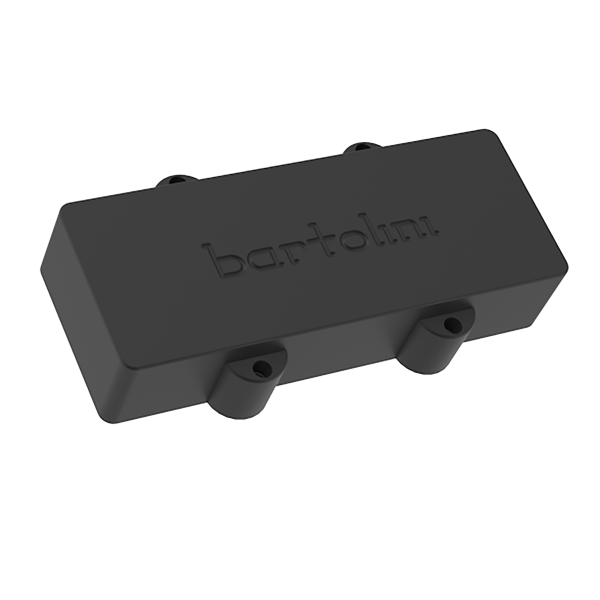

Bartolini 4-String Original 2J D9 Double J-Bass – D942J

Product Description Product Specs/Additional Information Related Videos Audio Product Description Incredible quad-coil flexibility in the Fender Modern Player Jazz bass shape. These are made to fit 2012-2013 Modern Player basses as well as Blacktop basses and are a powerful choice for custom builds.We started with 2 of our hugely popular 9J passive hum-cancelling Jazz bass pickups and installed them in a double-wide modern J-bass shell.We made the J pickups work together as a dual humbucker or as a J-bass when coil-split. When wired as a series humbucker, they are big and growly with high output. When wired as a parallel humbucker, they are fat and round but with focus – like when you have both volumes on full on a J-Bass. When wired to coil cut, they are precise and clear. And they are hum-free in all setups which can be easily chosen when you install a toggle switch. They can be used without a switch, but you get a lot more flexibility if you have one.Because Original 2J pickups have blades instead of poles, they work with a range of string spacings. They are internally shielded and are wired with shielded cables. These pro-level pickups are fully hum-killing even on the noisiest stage or studio. They are sweat-proof and won’t make horrible noises when you hit them with the strings.We make them special for neck (Bass, -B) and bridge (Treble, -T) positions so they balance well when blended together or played separately. Product Specs/Additional Information Coil Structure: Quad Coil Dual Inline Hum-killingCable Type: 4-Conductor Cable with shield and bare drainMagnetic Circuit: 2 types of carbon steel, brass, and copper powered by ceramic (ferrite) magnets Bass end neck coil North, Treble end neck coil South, Treble end neck coil North, and Bass end bridge coil South for both positionsD942J-B – NeckDC Resistance: ~6.4KΩ each inline coil pairResonant Frequency: ~6.3KHzSensing Width: 2.52″ [64mm] Max 1.89″ [48mm] MinD942J-T – BridgeDC Resistance: ~7KΩ each inline coil pairResonant Frequency: ~6.4KHzSensing Width: 2.52″ [64mm] Max 1.89″ [48mm] MinD9 Double J3.72″ [94mm] Long,1.44″ [37mm] Wide,0.84″ [21.3mm] Thick 0.15″ [3.8mm] Cable4 Standard J Pickup Mounting ears for your #3 or #4 screwsPickup Wiring 4-Conductor 2J Squared Quad CoilD9 J-Bass Pickup Dimensions Related Videos Audio
